Film width: Max.520mm
Film width range(bag former): 240-520mm
Bag width: 110-250mm
Bag length: 80-400mm
Film roll diameter: 320mm
Packing rate: 10-60bag/min
Measurment range: 150-2000ml
Film thickness: 0.07-0.15mm
Power: 220V,50/60HZ, Single Phase
Machine size: (L)1110*(W)1675*(H)1655mm
Machine weight: 500kg
1. Electronic scale measurement, new design, beautiful appearance, reasonable structure, more advanced technology;
2. Imported PLC computer control system, color touch screen easy, intuitive and efficient;
3. Import servo film transporting system, import color sensor, accurate positioning machine performance packaging beautifully;
4. Multiple automatic alarm protons educating the maximum loss;
5. Specialized in the production of quad seal bag, bag shape is very beautiful and high-end;
6. Suitable for packing all kinds of dates, potato chips, pasta, tealeaves, rice, nuts, dry fruits, puffed food, candy, peanut, melon seeds, seeds, popcorn, salt, sugar and other powdered, granular, strip product etc packing.
Free consultation service before, during and after sales;
Free project planning and design services;
Free debugging of equipment until everything is functional;
Free training of equipment maintenance and operation personally;
Free new production techniques and formulas;
Machine provides 1 year complete warranty and full lifetime maintenance service.

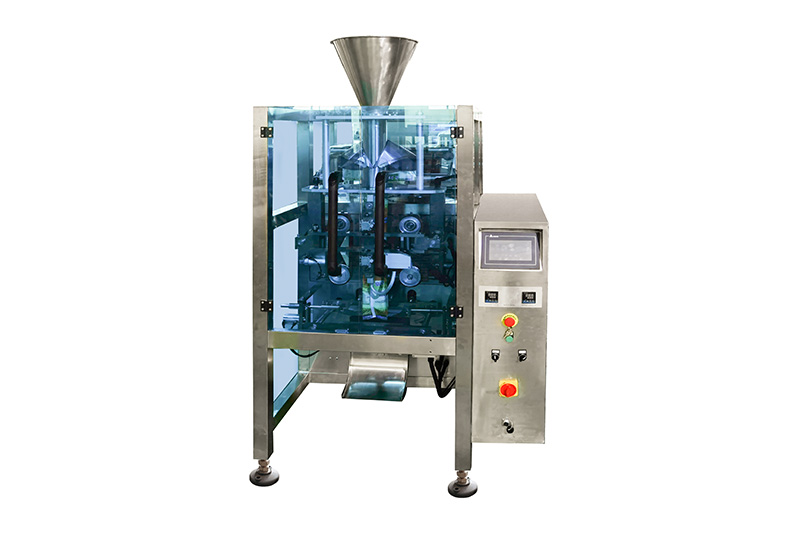

| Model： | HF-520 |
| Film width | Max.520mm |
| Film width Range(bag former) | 240-520mm |
| Bag Width: | 110-250mm |
| Bag Length: | 80-400mm |
| Film roll Diameter: | Max.320mm |
| Packing rate: | 10-60bag/min |
| Measurment range: | 150-2000ml |
| Film thickness: | 0.07-0.15mm |
| Power: | 220V,50/60HZ, Single Phase |
| Machine size: | (L)1110*(W)1675*(H)1655mm |
| Machine Weight: | 500kg |
| Remark | Pneumatic Type |
