Packing speed：30~150 bags/min
Film size：90-220mm
Package length：120-300mm
Package width：35-80mm
General power：3.1KW
Suitable for baking food (moon cake, bread, biscuits, etc.), medical equipment, candy, medicine, daily necessities, hardware parts, paper boxes or trays and other solid regular object packaging.
The machine is controlled by three servos.
Seven-inch touch screen display, easy operation, clear working state.
Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
Automatically adjust the bag length without manual setting.

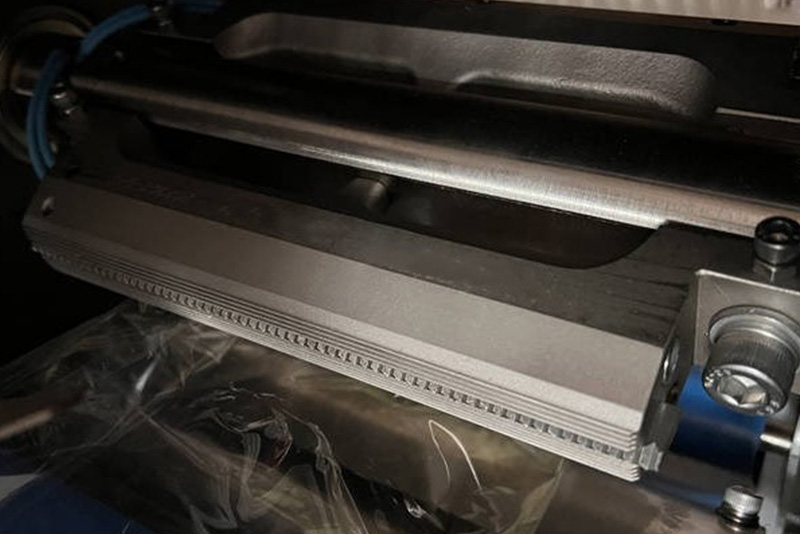

Higher precision, accurate sealing and cutting position.
Stop position and print position can be set arbitrarily.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
The range of packaging is expanded to accommodate a variety of product specifications.
The structure layout in line with human engineering mechanics can facilitate the hygienic cleaning, maintenance, maintenance and overhaul of the machine quickly.
Reduce the labor intensity of the operator and effectively improve the production efficiency.
|
Model |
MC-100(Single jaw) |
MC-100(Double jaws) |
MC-100(Triple jaws) |
|
Package length |
120~300 mm |
60~200mm |
45~120mm |
|
Package width |
35~80 mm |
35~80mm |
35~70mm |
|
Package height |
5~35mm |
5~35mm |
5~30mm |
|
Packing speed |
30~150 bags/min |
30~250 bags/min |
30~450 bags/min |
|
Film size |
90~220 mm |
90~220 mm |
90~220 mm |
|
Packaging film type |
PP、PE、PVC、PS、EVA、PET、PVDC+PVC、OPP+Composite CPP |
||
|
Type of power supply |
220V 50HZ |
220V 50HZ |
220V 50HZ |
|
General power |
3.1Kw |
3.8Kw |
4.5Kw |
|
Weight |
360Kg |
360Kg |
360Kg |
|
Dimension |
4000x930x1370 mm |
||
