Packing speed：30~150 bags/min
Film size：90-400mm
Package length：120-500mm
Package width：35-200mm
General power：3.8KW

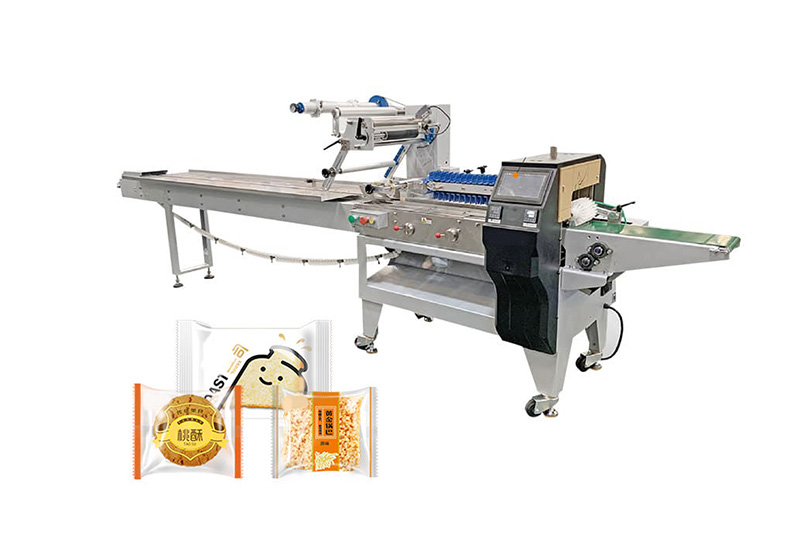

It is suitable for the packaging of large-size and large-weight mooncakes, flatcakes and other baked goods, or large-size products
The machine is controlled by three servos.

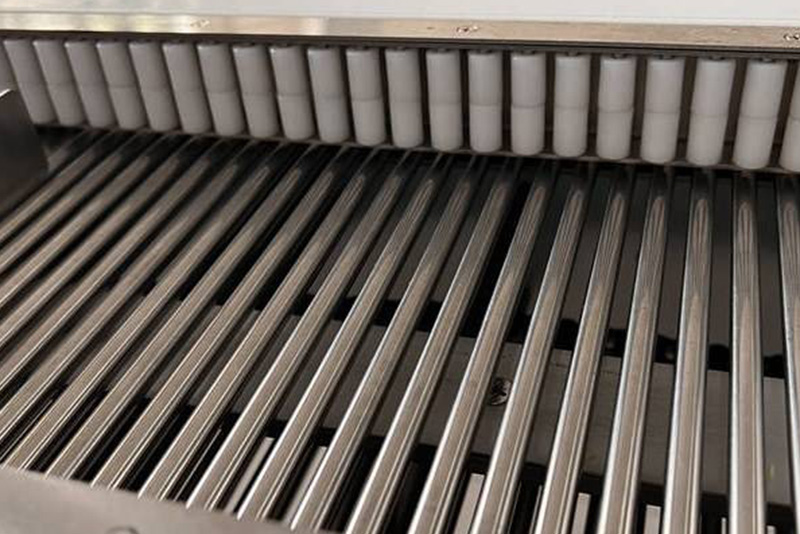

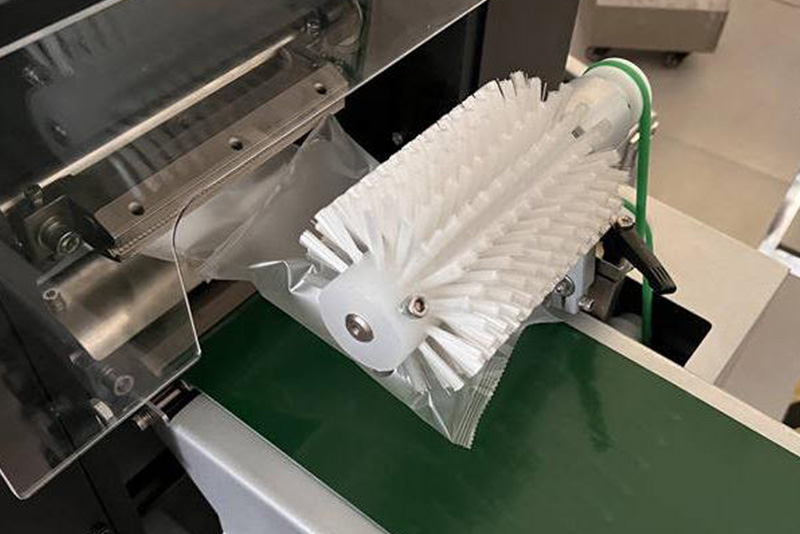

Conveyor under the belt, can pass heavier (30g) materials; The brush can make the envelope more flat and meet the exhaust demand. The tool holder can pass through the larger size of the material.
Seven-inch touch screen display, easy operation, clear working state.
Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
Automatically adjust the bag length without manual setting.
Higher precision, accurate sealing and cutting position.
Stop position and print position can be set arbitrarily.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
The range of packaging is expanded to accommodate a variety of product specifications.
The structure layout in line with human engineering mechanics can facilitate the hygienic cleaning, maintenance, maintenance and overhaul of the machine quickly.
Reduce the labor intensity of the operator and effectively improve the production efficiency.
|
Model |
MC-180L |
|
Packing speed |
30-150 bag/min |
|
Film size |
90-400 mm |
|
Package length |
120-500mm |
|
Package width |
35-200 mm |
|
Package height |
5-60 mm |
|
General power |
3.8Kw |
|
Packaging film type |
PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC. |
|
Power supply |
220v/50Hz |
|
Machine size |
4200 x 930 x1370 mm |
|
Net weight |
450 kg |
