Packing speed：30~120 bags/min
Film size：90-400mm
Package length：120-500mm
Package width：35-160mm
General power：3.1KW
It is suitable for packing all kinds of irregular articles, sticky articles and solid objects.
Food: noodles, egg roll, sausage, squid, bread, moon cake, dried fruit, soft candy, etc.
Chemical: soap, tape, etc.
Electrical switch: plug board, switch, etc.
Other categories: wind essence, pocket notepad, box pen, medicine, etc.
The machine is controlled by three servos.
Conveyor under the belt, can pass heavier (30g) materials; The brush can make the envelope more flat and meet the exhaust demand. The tool holder can pass through the larger size of the material.

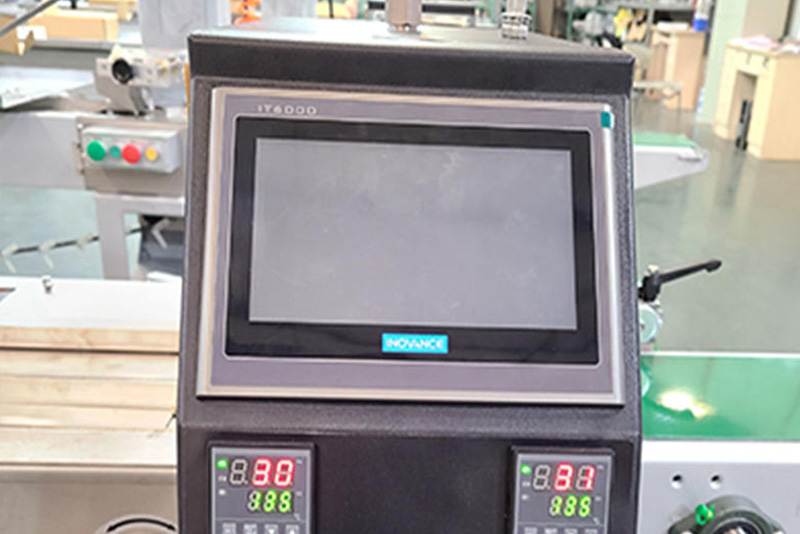

Seven-inch touch screen display, easy operation, clear working state.
Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
Automatically adjust the bag length without manual setting.

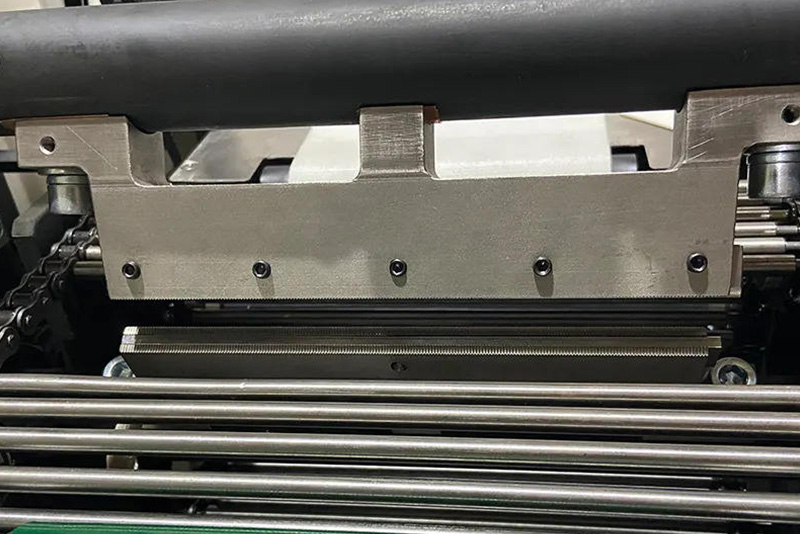

Higher precision, accurate sealing and cutting position.
Stop position and print position can be set arbitrarily.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
The range of packaging is expanded to accommodate a variety of product specifications.
The structure layout in line with human engineering mechanics can facilitate the hygienic cleaning, maintenance, maintenance and overhaul of the machine quickly.
Reduce the labor intensity of the operator and effectively improve the production efficiency.
|

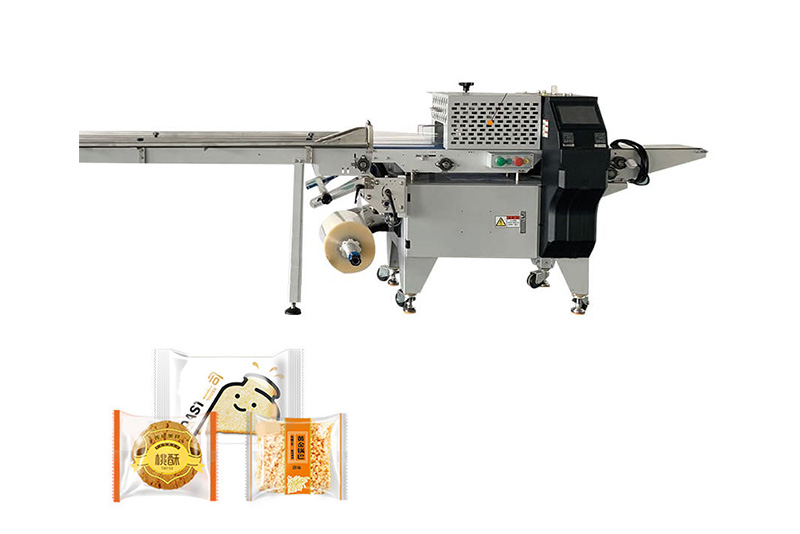

Model |
MC-3000(Single jaw) |
MC-3000(Double jaws) |
|
Package length |
120~300 mm |
60~350mm |
|
Package width |
35~160 mm |
35~160mm |
|
Package height |
5~60mm |
5~60mm |
|
Packing speed |
30~120 bags/min |
30~250 bags/min |
|
Film size |
90~400 mm |
90~400 mm |
|
Packaging film type |
PP、PE、PVC、PS、EVA、PET、PVDC+PVC、OPP+Composite CPP |
|
|
Type of power supply |
220V 50HZ |
220V 50HZ |
|
General power |
3.1Kw |
3.8Kw |
|
Weight |
350Kg |
350Kg |
|
Dimension |
4100x770x1170 mm |
|
