Packing speed：25~80 bags/min
Film size：600mm
Package length：120-600mm
Package width：250mm
General power：8.6KW
It is suitable for the packaging of frozen food such as dumplings, wonton, steamed bun, Tangyuan, etc., as well as multiple or single bulk steamed bun, steamed bun, hamburger, bread, cake carton and other solid regular objects.
The machine is controlled by eight servos.

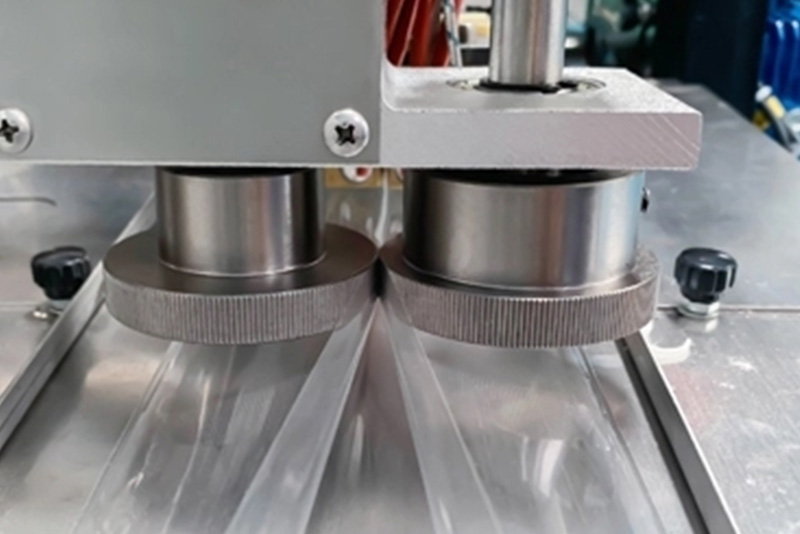

The knife seal is reciprocating structure, and the sealing is smooth and beautiful
The machine packaging range is large, suitable for packaging all kinds of large specifications, large size products.

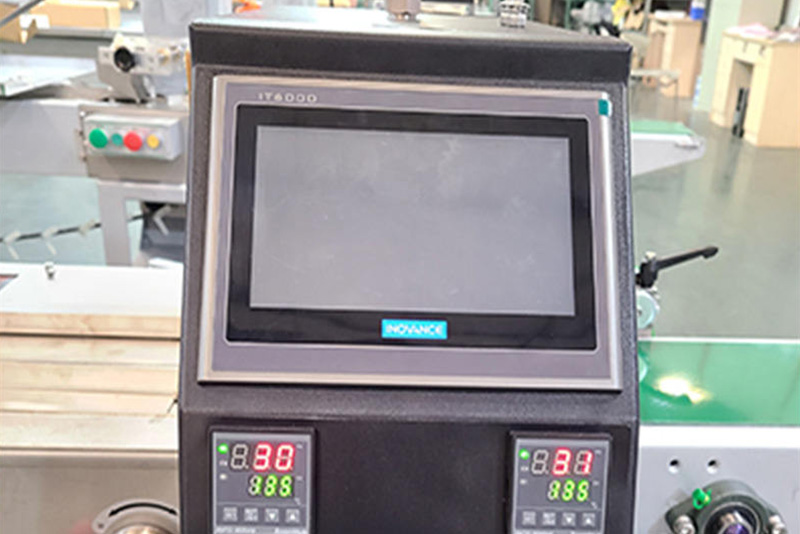

Ten inch touch screen display, easy operation, clear working state.
Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
Automatic adjustment of bag length, no manual setting.
The machine has higher precision and the sealing and cutting position is accurate.
Stop position, coding position can be arbitrarily set in the touch screen, just click, convenient and fast.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
| Model | MC-602W |
|
Distance between centers |
120/160mm |
|
Packing speed |
20-80 bag/min |
|
Film size |
600 mm |
|
Package length |
120-600mm |
|
Package width |
250mm |
|
Package height |
120mm |
|
General power |
8.6Kw |
|
Packaging film type |
PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC. |
|
Power supply |
220v/50Hz |
|
Machine size |
4600 x 1275 x1590 mm |
|
Net weight |
1000 kg |
